Resin Infusion vs. Prepreg: What’s the Difference?
Choosing the right composite manufacturing process is a significant decision that affects product quality, production efficiency, and cost-effectiveness. Among the various methods available, Resin Infusion vs. Prepreg are two prevalent techniques, each with its own set of advantages and considerations. Understanding these methods can help select the most suitable approach for specific applications.
What Is Resin Infusion?
Both resin infusion and prepreg are techniques used in composite manufacturing, but they differ in process and application.
Resin infusion involves laying dry fiber reinforcements into a mold and then covering them with a vacuum bag. A vacuum pump removes the air, creating a vacuum that draws resin into the fibers, ensuring thorough impregnation. This method is particularly effective for producing large, complex parts with high fiber content and minimal voids.
How Does Resin Infusion Work?
- The dry laminate stack is prepared and placed inside a mold.
- A vacuum bag is placed over the mold and sealed tightly.
- Vacuum draws air out, and resin is pulled into the dry fibers through a network of flow media and spiral tubing.
- Once saturated, the resin cures—either at room temperature or elevated temperatures, depending on the resin system.
Resin Infusion is usually used in the following industries:
- Marine Industry: Used for manufacturing boat hulls and decks due to its ability to produce large, seamless components.
- Wind Energy: This method is employed to create wind turbine blades, benefiting from its capacity to handle large structures.
- Automotive: Applied in producing lightweight car body panels and structural components.
- Infrastructure: Utilized to construct bridge components and architectural structures requiring strength and durability.
What Is Prepreg?
Prepreg refers to fiber reinforcements that have been pre-impregnated with a partially cured resin. These materials are stored at low temperatures to prevent complete curing. During manufacturing, prepregs are laid into molds and then cured under heat and pressure, typically in an autoclave. This results in components with precise resin-to-fiber ratios and excellent mechanical properties.
How Does Preperg Work?
- Prepreg sheets are cut to shape and laid into molds by hand or automated machines.
- Each layer is precisely positioned and then vacuum-bagged for air removal.
- The part is cured in an oven or autoclave where temperature and pressure control the final finish.
Some of the most common applications of Prepreg are:
- Aerospace: Widely used for aircraft interiors, structural components, and flooring due to its high strength-to-weight ratio.
- Automotive: Utilized in high-performance and luxury vehicles for parts like chassis and body panels.
- Sports Equipment: Common in manufacturing bicycles, golf clubs, and tennis rackets where performance and weight are critical.
- Wind Energy: Applied in the production of wind turbine blades requiring consistent material properties.
Key Differences Between Resin Infusion and Prepreg Techniques
Here’s a side-by-side comparison that highlights how these two composite manufacturing methods stack up across key categories.
| Aspect | Resin Infusion | Prepreg |
| Material State | Uses dry fibers and liquid resin mixed during the process | Fibers come pre-impregnated with resin, partially cured |
| Storage Requirements | Materials can be stored at room temperature | Must be stored in a freezer to prevent premature curing |
| Process Complexity | Setup includes vacuum bagging, resin routing, and flow control | Requires precise layup and careful handling of prepreg material |
| Curing Method | Cures under vacuum pressure; may or may not require heat | Requires heat and pressure; typically cured in an autoclave or oven |
| Production Speed | Slower due to resin flow and cure time | Faster once laid up, though prep time for material cutting and layup adds up |
| Tooling Cost | Lower tooling costs; suitable for large or complex shapes | Higher tooling and equipment costs; more viable for precision applications |
| Work Environment | Less controlled; requires good flow management to avoid dry spots | Controlled resin content and uniform layup reduce variability |
| Material Waste | More waste from resin mixing and flow media | Less waste due to premeasured resin content |
| Labor Skill Requirement | Can be learned with basic training; flow paths and sealing take practice | Requires skilled technicians to handle material and layering correctly |
| Application Suitability | Suitable for large structures and projects requiring flexibility in tooling | Ideal for high-performance parts where consistency, strength, and precision are a must |
| Surface Finish Quality | Can vary; dependent on flow pattern and mold surface | Typically higher cosmetic finish due to uniform pressure and resin control |
| Fiber Volume Fraction | Moderate to high with experience, though less consistent | Very high and consistent fiber volume due to exact resin content |
| Shelf Life | Long shelf life for dry materials | Limited shelf life, even in cold storage |
Choosing between Resin Infusion and Prepreg depends on your specific project’s priorities. Both methods have their place, and knowing when to use each can make production smoother, more efficient, and ultimately more successful.
Pros and Cons of Resin Infusion and Prepreg
Delving into the advantages and disadvantages offered by these two methods will allow you to make a more informed decision about which one may be the best fit for your project. Let’s explore their main benefits and drawbacks:
Advantages and Disadvantages of Resin Infusion
Resin infusion offers great flexibility, particularly for projects involving larger components or complex shapes. It works well when controlling resin usage is a priority and the overall cost of materials needs to stay low. Since dry fabrics are easier to handle and store than prepreg, the upfront logistics are simpler, too.
Advantages of Resin Infusion
- Lower material costs—Dry reinforcement and off-the-shelf resin systems are generally more cost-effective than pre-impregnated materials.
- Good for large or irregular shapes—The method adapts well to molds with complex geometries or large surface areas without the need for specialized machinery.
- High fiber volume potential—When done correctly, infusion produces strong, lightweight parts with efficient fiber-to-resin ratios.
- Reduced emissions and cleaner work environment—The closed mold system minimizes the release of styrene and VOCs, improving safety and cleanliness.
- Extended working time—Since the resin isn’t mixed until the part is ready for infusion, there’s more time for careful layup and vacuum setup.
Disadvantages of Resin Infusion
- Requires careful setup—Leaks in vacuum bags, improper resin flow paths, or bridging can lead to dry spots or part defects.
- Longer cycle times—Resin flow and complete cure can take longer, slowing down production for high-volume needs.
- Inconsistent results without experience—The quality of the final part depends heavily on technique, vacuum integrity, and proper resin management.
- More disposable materials—Even though the process uses less expensive materials, items like peel ply, flow media, and tubing often end up as waste.
Advantages and Disadvantages of Prepreg
Prepreg composites are known for their precision and repeatability. They’re preferred when part performance and cosmetic finish are top priorities. Since the resin is already applied and partially cured, there’s no mixing involved, and the resin content is tightly controlled.
Advantages of Prepreg
- Consistent resin distribution—Each sheet has an even resin content, helping eliminate variability and guesswork.
- Clean processing—No liquid resin handling means fewer messes and less post-processing cleanup.
- High-quality finishes—Prepreg typically produces very smooth, void-free surfaces ready for painting or polishing.
- Excellent mechanical properties—The tight control over resin-to-fiber ratios means stronger and stiffer parts for the same weight.
- Reduced curing time—Once in the autoclave or oven, the part cures quickly and predictably with minimal manual oversight.
Disadvantages of Prepreg
- Higher upfront costs—The material itself is more expensive, and refrigeration is required to extend shelf life.
- Limited working time—Once removed from cold storage, prepreg must be used within a specific window before it becomes unusable.
- Specialized equipment needed—An oven or autoclave is required to complete the cure cycle, which requires additional equipment investments.
- Less suitable for large parts—Handling and laying down prepreg can become difficult and time-consuming for oversized or highly contoured components.
Optimize Your Composite Production with Smartech’s Silicone Membranes
Whether you’re using resin infusion or prepreg methods, the process you choose directly affects your finished product’s speed, precision, and quality. Knowing their main differences, advantages, and drawbacks can help you evaluate which method best suits your needs. 8

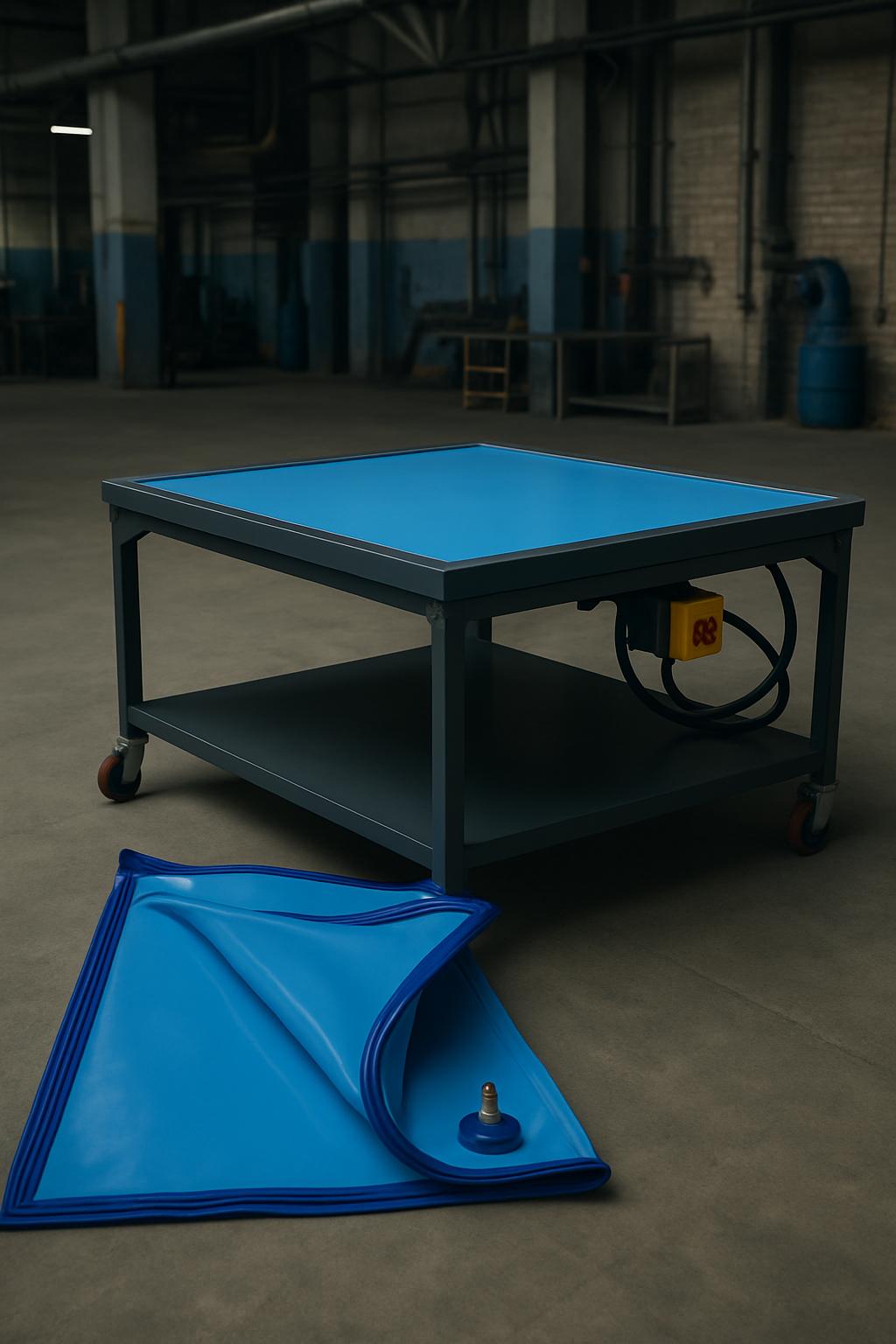

At Smartech, we support both processes with our silicone and rubber membranes designed for composite manufacturing. Our reusable vacuum bagging sheets are made with high-elongation silicone that conforms easily to your part geometry, helping to eliminate bridging and improve resin distribution. They handle high temperatures, maintain excellent vacuum pressure, and are custom-fit to your application—all while reducing labor, material waste, and long-term costs. Whether you’re debulking, wet-laying, infusing, or using prepreg, we offer a range of durable membrane solutions to help you streamline your workflow and improve your outcomes.
Contact us to learn how Smartech’s Silicone & Rubber Membranes can support your process. We’re here to help you choose the best solution for your application.
